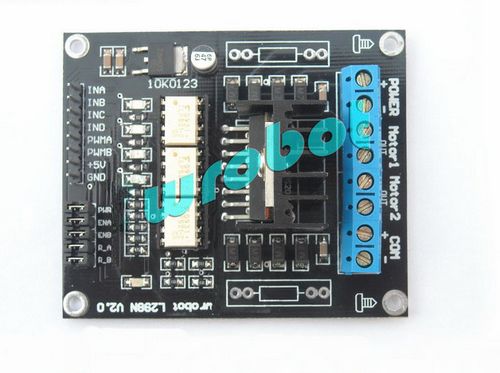

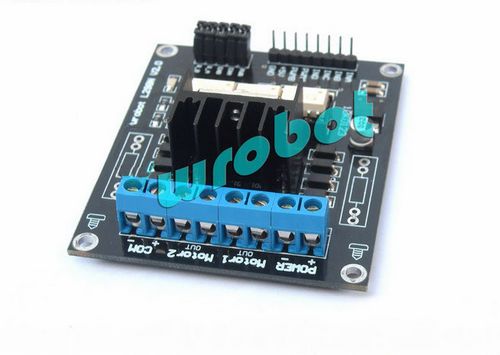

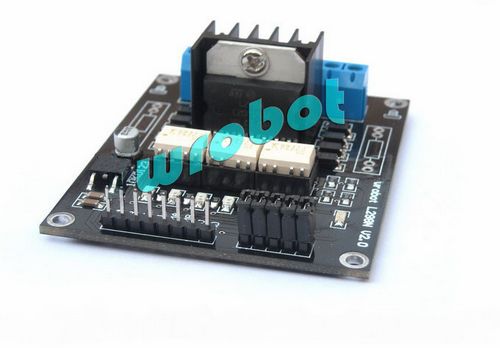

| Wrobot L298N Motor Driver Shield V2.0
Wrobot L298N Motor Driver Shield V2.0
Description：
L298N dual H-bridge driver
Be able to drive a step motor or two DC motors
This is a 4.8-46V, 2A Dual Motor Controller which uses ST L298N dual full-bridge driver. Its performance has been improved greatly. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Drive current up to 2A per motor output.
Specification ：
1、Based on L298N of STMicroelectronics (ST), with strong driving ability
2、Equiped with freewheel diodes and heat sinks, has stable performance
3、6-channel opticalcoupler isolation, complete separation of control speed, safe and stable
4、Reserved current-limiting resistor bits, you can choose PWM enable through limiting resistors
jumper
5、Logic voltage changeable, generated by the drive plate or supplied from external
6、Dual voltage supply, adapt to motor with wider drive voltage
7、Apply to a variety of platforms such as Arduino / AVR / ARM
Electronic Parameters :
1、The logic part of the input voltage: 6 ~ 12V
2、Driven part of the input voltage Vs: 4.8 ~ 46V
3、The logical part of the work current Iss: 36mA
4、Maximum power dissipation: 25W (T = 75 degree Celsius)
5、Control signal input level:
6、High level: 2.3V = Vin = Vss
7、Low:-0.3V = Vin = 1.5V
8、Operating temperature: -25 degree Celsius ~ +130 degree Celsius
9、Drive Type: Dual high-power H-bridge driver
10、Module Size: 58mm*65mm
