Product | RFID & NFC | 13.56Mhz RFID White Card

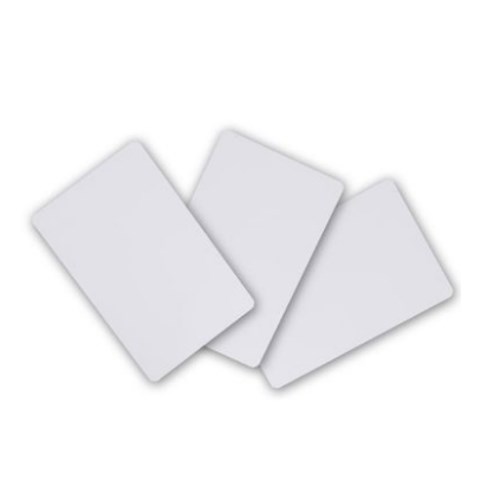

13.56Mhz RFID White Card
13.56Mhz RFID White Card
41997
More than 100

US$1.50 Loading ...

Share/Save/Bookmark



13.56Mhz RFID White Card




Description :


The RFID Contactless Cards are finely laminated blank card、plain white、no marking with no any word or lable.

Waterproof and dustproof

Main application access control and meeting attendan

Resonance Frequency : 13.56MHZ

Memory : 1K Byte EEPROM Memory

Communication Rate : 106 KBPS

Working distance : 10 cm

32 Bit serial number

Operating temp.range: -20℃- 50℃

Parameter :

1、Capacity of 1K byte EEPROM

2、Divided into 16 sectors, with each sector composed of 4 blocks. Each block is 16 bytes and serves as minimum data unite.

3、Each sector has a separate set of passwords and access control

4、Each card has a unique 32-bit serial number

5、With anti-collision mechanism, it can support multiple card operation

6、No power, with build-in antenna, and contains logic circuit for encryption control and
communication

7、Data retention period is 10 years, and can be rewritten 100,000 times, with unlimited reading time

8、Operating temperature: -20 ℃ ~ 50 ℃ (humidity 90%)

9、Operating frequency: 13.56MHZ

10、Communication speed: 106 Kbps

11、Read and write distance: <10 cm (depend on the reader)

12、Size: 85.5mm×54mm×0.84mm

Composition :

The electrical parts consist of an antenna and ASIC.

Antenna: made of winding coils, suitable for packaging in IS0 card.

ASIC: composed of a high-speed (106KB baud rate) RF interface, a control unit and a 8Kbit EEPROM.



Document Download :

Click to download the datasheet


下载pdf文档资料.pdf
